2相3.75° 16HS
【电机型号】：
16HS
【电机类型】：
3.75度 混合式步进电机
【机座尺寸】：
NEMA16 ( 39 X 39MM )
【电机特性】：
高精度、运行平稳、高速性能
【适用范围】：
适用于打印机行业、灯光行业、智能球等行业
-
产品介绍
-
技术参数
-

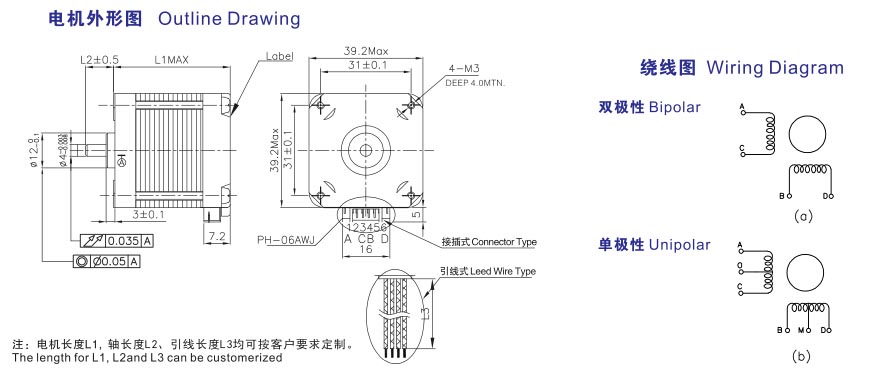

电机外形图
-
电气连接
-
应用范围
-
资料下载
瑞宝(RB MOTOR) 16HS 39*39*L1mm NEMA 16 两相混合式步进电机； 步距角3.75度； 支持定制； 欢迎试样，如需报价请随时联系我司，谢谢！ | Model | Motor Height
L1 | Phase | Rated Voltage | Rated Current | Resistance /Phase(20℃) | Inductance/ Phase(1KHz) | Holding Torque | Detent Torque | The Max. Starting Rate | The Max. Slewing Rate | Rotor Inertia | Weight | | unit | mm |
| V | A | Ω | mH | mN.m | mN.m REF. | PPS | PPS | g.cm² | KG REF. | | 16HS1002 | 25.5 | 2 | 5.9 | 0.55 | 10.7 | 11.0 | 90 | 10 | 2200 | 3600 | 16.7 | 0.13 | | 16HS1001 | 27 | 2 | 7.7 | 0.45 | 17.0 | 8.0 | 70 | 10 | 1500 | 3500 | 18 | 0.2 | | 16HS2010 | 29 | 2 | 8.0 | 0.55 | 14.5 | 12.1 | 100 | 10 | 1500 | 3500 | 20 | 0.23 | | 16HS2016 | 33 | 2 | 6.4 | 0.4 | 16.0 | 17.0 | 200 | 15 | 1000 | 1800 | 20.5 | 0.17 | | 16HS4002 | 5 | 5.9 | 0.45 | 13.0 | 15.0 | 100 | 15 | 1800 | 2800 | 21.7 | 0.17 | | 16HS2017 | 2 | 12.6 | 0.9 | 14.0 | 14.5 | 170 | 11.8 | 1000 | 2000 | 20 | 0.17 | | 16HS5004G | 43 | 2 | 21.5 | 0.5 | 43.0 | 41.0 | 220 | 20 | 450 | 700 | 43.7 | 0.26 | | 16HS5003G | 2 | 19.3 | 0.7 | 27.5 | 31.0 | 260 | 20 | 450 | 700 | 43.7 | 0.26 | | 16HS5002G | 2 | 16.5 | 1.0 | 16.5 | 17.0 | 320 | 20 | 450 | 700 | 40.2 | 0.26 | | 16HS5005 | 2 | 2.4 | 1.2 | 2.0 | 2.2 | 150 | 20 | 600 | 3000 | 43.7 | 0.26 | | 16HS6002 | 55 | 2 | 5.2 | 0.4 | 13.0 | 23.0 | 180 | 11.8 | 1100 | 1800 | 54 | 0.35 | | 16HS6001G | 2 | 16.0 | 1.0 | 16.0 | 27.0 | 430 | 20 | 500 | 700 | 57.7 | 0.36 |
|
|
|
|
|
|
|
|
|
|
|
|
| 1. 表中启动频率，空载运行频率的测试条件：恒流驱动，驱动电压24V
The testing condition for the above starting rate and slewing rate: be driven by a constant current and driving voltage is 24V
2. 电阻、电感值均为恒温（20℃）条件下所测的数值；
The values for the above resistance and inductance are tested under 20℃ constant temperature. | |
|
|
特性 Item | 规格
Specifications | 相数
Phase No. | 2 | 步距角
Step Angle | 3.75 | 步距角精度
Step anagle accuracy | ±5%(full step, no load) | 电阻精度
Resistance accuracy | ±10%～15% ohm | 温升
Temperature rise | 80℃ Max. | 绝缘电阻
Insulation resistance | ≥100MΩ min. 500V DC | 绝缘等级
Insulation class | Class B | 介电强度
Dielectric strength | AC600v/1mA/1S | 使用环境温度
Environmental temperature | —20℃～50℃ | 使用环境湿度
Environmental humidity | 90%MAX | 电机转动方向（从轴伸向看）
Direction of rotation(from the shaft side) | A-AB-B-CW |
尊敬的顾客，有关此产品的更多信息敬请联系我司，谢谢！
|
