2相3.75°42PMT
【电机型号】：
42PMT
【电机类型】：
3.75度, 永磁式步进电机
【机座尺寸】：
φ42MM
【电机特性】：
高速、大力矩、运行平稳
【适用范围】：
适用于打印机行业、电子、自动化行业
-
产品介绍
-
技术参数
-

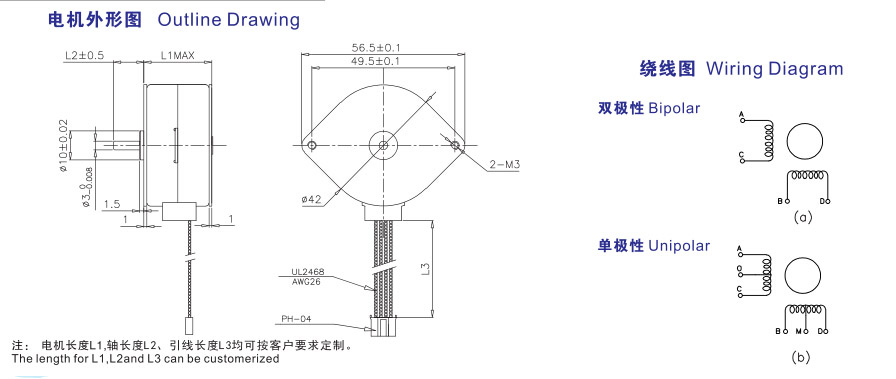

电机外形图
-
电气连接
-
应用范围
-
资料下载
瑞宝(RB MOTOR) 42PMT Dia. 42mm 永磁式步进电机； 机身高度16/22mm；
步距角3.75度； 支持定制； 欢迎试样，如需报价请随时联系我司，谢谢！
电机型号
Model | 电机高度
Motor Height
L1 | 相数
Phase | 额定相电压
Rated Voltage | 额定相电流
Rated Current | 电阻/相
Resistance/ Phase(20℃) | 电感/相
Inductance/ Phase(1KHz) | 保持转矩
Holding Torque | 定位转矩
Detent Torque | 最大空载启动频率
The Max. Starting Rate | 最大空载运行频率
The Max. Slewing Rate | 转动惯量
Rotor Inertia | 重量
Weight | | unit | mm |
| V | A | Ω | mH | mN.m | mN.m REF. | PPS | PPS | g.cm² | KG REF. | | 42PMT16001 | 16 | 2 | 5.5 | 0.3 | 11.0 | 10.0 | 50 | 10 | 1200 | 2000 | 9.2 | 0.12 | | 42PMT16002 | 16 | 2 | 3.9 | 0.5 | 7.8 | 6.8 | 70 | 10 | 1200 | 2000 | 9.2 | 0.12 | | 42PMT22001 | 22 | 2 | 3.75 | 0.5 | 7.5 | 8.4 | 90 | 8 | 700 | 1300 | 7 | 0.12 | | 42PMT22007 | 22 | 2 | 5.6 | 1.2 | 4.0 | 5.5 | 120 | 25 | 700 | 2000 | 10.7 | 0.12 | | 42PMT22008 | 22 | 2 | 38.0 | 0.4 | 73.0 | 50.0 | 110 | 8 | 700 | 1100 | 10.9 | 0.12 | | 42PMT22009 | 22 | 2 | 19.0 | 1.0 | 19.0 | 26.0 | 90 | 8 | 700 | 800 | 10.9 | 0.12 | | 42PMT22010 | 22 | 2 | 5.6 | 0.5 | 11.2 | 14.0 | 105 | 25 | 700 | 900 | 10.7 | 0.12 | | 42PMT22011 | 22 | 2 | 7.56 | 0.63 | 12.0 | 13.5 | 100 | 5 | 900 | 2500 | 10 | 0.12 | | 42PMT22013 | 22 | 2 | 5.4 | 0.6 | 8.0 | 10.0 | 105 | 10 | 800 | 2000 | 10.7 | 0.12 | | 42PMT22014 | 22 | 2 | 2.0 | 0.5 | 4.0 | 6.5 | 90 | 10 | 950 | 2800 | 10.5 | 0.12 | | 42PMT22015 | 22 | 2 | 6.5 | 0.5 | 13.0 | 17.0 | 115 | 25 | 700 | 1200 | 10.7 | 0.12 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 1. 表中启动频率，空载运行频率的测试条件：恒流驱动，驱动电压24V
The testing condition for the above starting rate and slewing rate: be driven by a constant current and driving voltage is 24V
2. 电阻、电感值均为恒温（20℃）条件下所测的数值；
The values for the above resistance and inductance are tested under 20℃ constant temperature. | |
|
|
| 瑞宝42PM电机系列型号对比表 | | 型号 | 42PM | 42PMD | 42PMGD | 42PMGH | 42PMA | 42PMK | 42PMT | | 款式 | 标准 | 升级 | 升级 | 升级(高能效) | - | - | - | | 电机高度 | 22.5mm | 17/22.5mm | 20.5mm | 23.5mm | 22/23mm | 22mm | 16/22mm | | 步距角 | 7.5度 | 7.5度 | 7.5度 | 7.5度 | 5度 | 3.6度 | 3.75度 | | 力矩 | 常规 | 更大力矩 | 更大力矩 | 更大力矩 | 常规 | 常规 | 常规 | | 速度 | 常规 | 常规 | 高速性能优化 | 高速性能优化 | 常规 | 常规 | 常规 | | 寿命 | 详情请咨询我司 |
|
