2phase 1.8° 23HAB
【Motor model】：
23HAB
【Motor type】：
1.8 degree, Ultra-thin Flat Stepper Motor
【Motor size】：
NEMA23 ( Dia.57mm )
【Motor feature】：
High speed, High accuracy, High torque, Low noise
【Application】：
Printers, the lighting industry and the industrial control industry etc.
-
Product Introduction
-
Technical Parameters
-

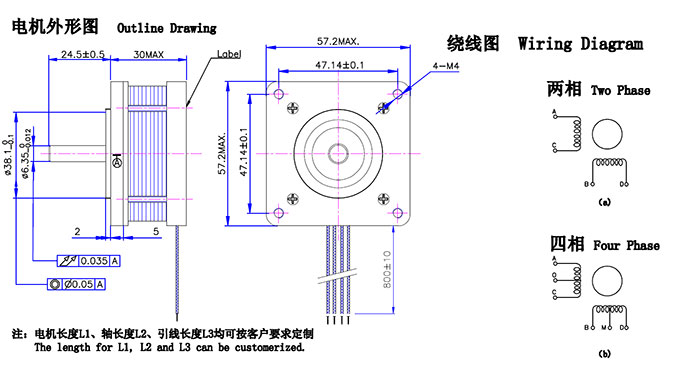

Outline Drawing
-

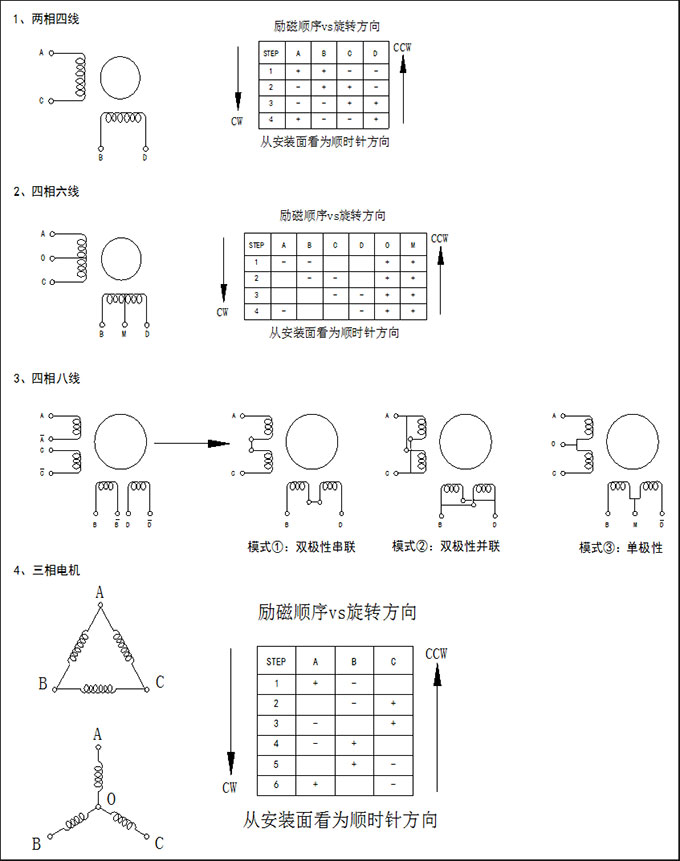

Diagram
-
Application
-
Download
瑞宝(RB MOTOR) 23HAB Dia.57mm NEMA 23 2 phase hybrid stepper motor； Step angle: 1.8 degree; Ultra-thin design available, the shortest of the motor height could be 21mm; Customization service acceptable; Welcome to make samples, and feel free to contact us if quotation requested, thanks! 电机型号
Model | 电机高度
Motor Height
L1 | 相数
Phase | 额定相电压
Rated Voltage | 额定相电流
Rated Current | 电阻/相
Resistance/ Phase(20℃) | 电感/相
Inductance/ Phase(1KHz) | 保持转矩
Holding Torque | 定位转矩
Detent Torque | 最大空载启动频率
The Max. Starting Rate | 最大空载运行频率
The Max. Slewing Rate | 转动惯量
Rotor Inertia | 重量
Weight | | unit | mm |
| V | A | Ω | mH | mN.m | mN.m REF. | PPS | PPS | g.cm² | KG REF. | | 23HAB0204 | 21 | 2 | 9.25 | 0.5 | 18.5 | 22.0 | 250 | 25 | 900 | 1100 | 48.5 | 0.19 | | 23HAB0205 | 21 | 2 | 1.9 | 0.9 | 2.1 | 3.7 | 200 | 50 | 400 | 600 | 53 | 0.19 | | 23HAB1205 | 25 | 2 | 3.06 | 0.9 | 3.4 | 4.5 | 330 | 15 | 2000 | 2700 | 64 | 0.24 | | 23HAB2203 | 36 | 2 | 1.68 | 2.8 | 0.6 | 1.7 | 800 | 60 | 1300 | 2500 | 141 | 0.39 | | 23HAB7201 | 40 | 2 | 2.52 | 2.8 | 0.9 | 2.0 | 800 | 50 | 2000 | 3400 | 134.9 | 0.43 | | 23HAB3201 | 40 | 2 | 2.38 | 3.4 | 0.7 | 1.0 | 720 | 30 | 600 | 3000 | 142 | 0.43 | | 23HAB4202 | 43 | 2 | 2.52 | 2.8 | 0.9 | 2.0 | 800 | 50 | 400 | 600 | 170 | 0.47 | | 23HAB4203 | 47 | 2 | 1.96 | 2.8 | 0.7 | 2.0 | 950 | 50 | 800 | 3000 | 168 | 0.5 | | 23HAB5203 | 57 | 2 | 1.96 | 2.8 | 0.7 | 2.3 | 1200 | 50 | 800 | 3000 | 214 | 0.65 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 1. 表中启动频率，空载运行频率的测试条件：恒流驱动，驱动电压24V
The testing condition for the above starting rate and slewing rate: be driven by a constant current and driving voltage is 24V
2. 电阻、电感值均为恒温（20℃）条件下所测的数值；
The values for the above resistance and inductance are tested under 20℃ constant temperature. | |
|
|
特性 Item | 规格
Specifications | 相数
Phase No. | 2 | 步距角
Step Angle | 1.8 | 步距角精度
Step anagle accuracy | ±5%(full step, no load) | 电阻精度
Resistance accuracy | ±10%～15% ohm | 温升
Temperature rise | 80℃ Max. | 绝缘电阻
Insulation resistance | ≥100MΩ min. 500V DC | 绝缘等级
Insulation class | Class B | 介电强度
Dielectric strength | AC600v/1mA/1S | 使用环境温度
Environmental temperature | —20℃～50℃ | 使用环境湿度
Environmental humidity | 90%MAX | 电机转动方向（从轴伸向看）
Direction of rotation(from the shaft side) | A-AB-B-CW |
Applied to the printers, the lighting industry and the industrial control industry etc.
