2相1.8° 23HDF
【电机型号】：
23HDF
【电机类型】：
1.8度 防水型混合式步进电机
【机座尺寸】：
NEMA23 ( 57 X 57mm )
【电机特性】：
防潮性能好、体积小、力矩大、低噪音
【适用范围】：
医疗设备，精密仪器等
【防水等级】：
IP65~IP67
-
产品介绍
-
技术参数
-
电机外形图
-

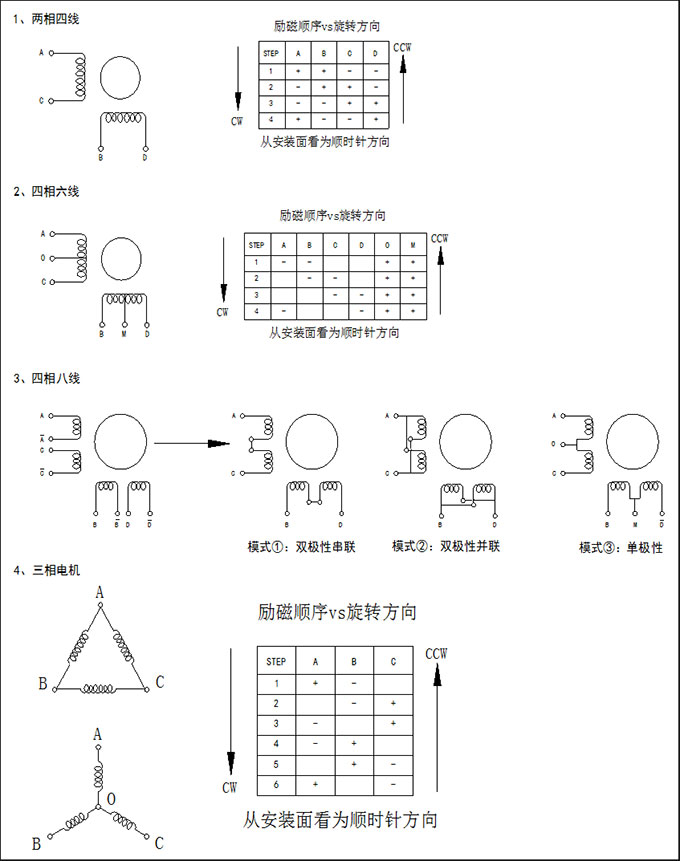

电气连接
-
应用范围
瑞宝(RB MOTOR) 23HDF 57mm NEMA 23 两相混合式, 防水型步进电机； 步距角1.8度；
IP65~IP67；
支持定制；
欢迎试样，如需报价请随时联系我司，谢谢！
电机型号
Model | 电机高度
Motor Height
L1 | 相数
Phase | 额定相电压
Rated Voltage | 额定相电流
Rated Current | 电阻/相
Resistance/ Phase(20℃) | 电感/相
Inductance/ Phase(1KHz) | 保持转矩
Holding Torque | 定位转矩
Detent Torque | 最大空载启动频率
The Max. Starting Rate | 最大空载运行频率
The Max. Slewing Rate | 转动惯量
Rotor Inertia | 重量
Weight | | unit | mm |
| V | A | Ω | mH | mN.m | mN.m REF. | PPS | PPS | g.cm² | KG REF. | | 23HDF1022 | 45 | 2 | 5.4 | 1.0 | 5.4 | 15.0 | 900 | 30 | 800 | 1600 | 207 | 0.5 | | 23HDF1028 | 2 | 5.0 | 1.2 | 4.2 | 10.8 | 850 | 30 | 1000 | 2500 | 159 | 0.5 | | 23HDF1215 | 2 | 2.3 | 1.5 | 1.5 | 4.0 | 720 | 30 | 1200 | 3500 | 209 | 0.5 | | 23HDF1026 | 2 | 2.4 | 3.0 | 0.8 | 2.3 | 1000 | 30 | 1500 | 3000 | 207 | 0.5 | | 23HDF5059 | 55 | 2 | 7.0 | 0.88 | 8.0 | 21.0 | 900 | 25 | 1800 | 1800 | 338 | 0.65 | | 23HDF5215 | 2 | 3.1 | 1.0 | 3.1 | 12.0 | 960 | 60 | 800 | 1000 | 344 | 0.65 | | 23HDF5236 | 2 | 3.0 | 2.0 | 1.5 | 5.0 | 1050 | 30 | 1000 | 2500 | 307 | 0.65 | | 23HDF5236 | 2 | 4.20 | 2.8 | 1.5 | 4.6 | 1500 | 50 | 900 | 1500 | 310 | 0.65 | | 23HDF5216 | 2 | 2.9 | 3.6 | 0.8 | 2.7 | 2000 | 60 | 900 | 1500 | 310 | 0.65 | | 23HDF7027 | 76 | 2 | 1.1 | 1.0 | 1.1 | 4.5 | 900 | 60 | 600 | 900 | 575 | 1.1 | | 23HDF7223 | 2 | 0.9 | 1.5 | 0.6 | 2.0 | 830 | 80 | 500 | 700 | 511 | 1.1 | | 23HDF7021 | 2 | 4.5 | 2.5 | 1.8 | 6.5 | 1050 | 30 | 1000 | 1800 | 515.8 | 1.1 | | 23HDF7029 | 2 | 3.1 | 2.8 | 1.1 | 4.5 | 1890 | 30 | 900 | 1500 | 506.9 | 1.2 | | 23HDF7214 | 2 | 3.6 | 3.0 | 1.2 | 4.5 | 2000 | 80 | 1800 | 3100 | 698 | 1.2 | | 23HDF7222 | 2 | 2.0 | 5.0 | 0.4 | 1.6 | 2100 | 50 | 700 | 2700 | 533 | 1.2 | | 23HDF8213 | 85 | 2 | 1.7 | 1.0 | 1.7 | 8.5 | 1050 | 80 | 700 | 1400 | 587.3 | 1.5 | | 23HDF8209 | 2 | 3.2 | 3.0 | 0.68 | 3.0 | 2100 | 40 | 500 | 1800 | 630 | 1.5 | | 23HDF9001 | 112 | 2 | 7.5 | 1.5 | 5.0 | 23.0 | 3200 | 120 | 600 | 1000 | 866 | 1.7 | | 23HDF9204 | 2 | 5.9 | 2.8 | 2.1 | 10.0 | 3000 | 150 | 500 | 700 | 968 | 1.7 | | 23HDF9207 | 2 | 3.6 | 3.0 | 1.2 | 4.5 | 3500 | 80 | 500 | 1000 | 968.7 | 1.7 | | 23HDF9205 | 2 | 3.8 | 4.2 | 0.9 | 3.8 | 3200 | 80 | 500 | 700 | 968.7 | 1.7 |
|
|
|
|
|
|
|
|
|
|
|
|
| 1. 表中启动频率，空载运行频率的测试条件：恒流驱动，驱动电压24V
The testing condition for the above starting rate and slewing rate: be driven by a constant current and driving voltage is 24V
2. 电阻、电感值均为恒温（20℃）条件下所测的数值；
The values for the above resistance and inductance are tested under 20℃ constant temperature. | |
|
|
特性 Item | 规格
Specifications | 相数
Phase No. | 2 | 步距角
Step Angle | 1.8 | 步距角精度
Step anagle accuracy | ±5%(full step, no load) | 电阻精度
Resistance accuracy | ±10%～15% ohm | 温升
Temperature rise | 80℃ Max. | 绝缘电阻
Insulation resistance | ≥100MΩ min. 500V DC | 绝缘等级
Insulation class | Class B | 介电强度
Dielectric strength | AC600v/1mA/1S | 使用环境温度
Environmental temperature | —20℃～50℃ | 使用环境湿度
Environmental humidity | 90%MAX | 电机转动方向（从轴伸向看）
Direction of rotation(from the shaft side) | A-AB-B-CW |
|
